Water Plate Heat Exchanger for Espar / Eberspächer & Webasto Coolant Heaters
Product Overview

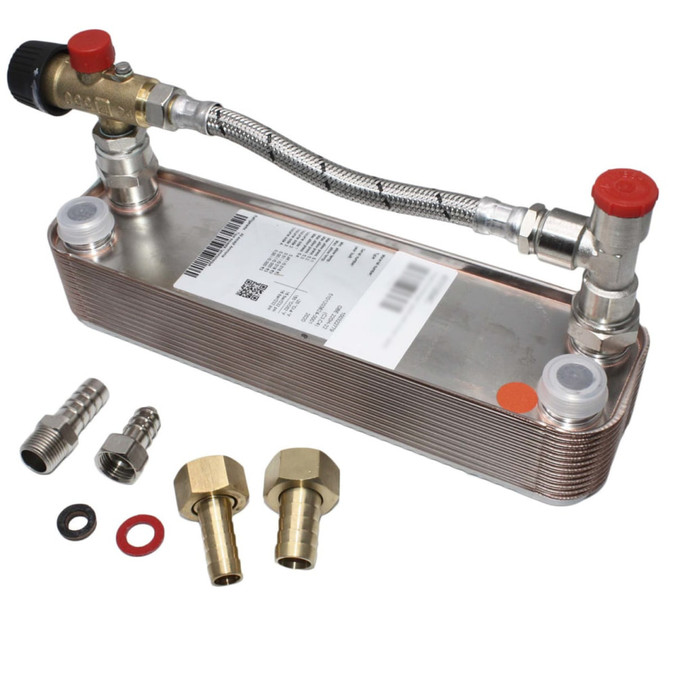

This water plate heat exchanger is designed for use with Espar / Eberspächer, Webasto, and similar coolant heaters, allowing efficient heat transfer from the heater coolant circuit to a separate fresh water circuit.
The exchanger is constructed with 22 internal plates, keeping coolant and fresh water fully separated while allowing both circuits to flow independently and efficiently heat domestic hot water. Suitable for replace 4111204.
PEX-A Compatibility
The 0.55 in (13.9 mm) outer diameter water connections are ideal for PEX-A expansion installations, ensuring a secure and reliable fit.
The thermostatic valve and connectors are pre-fitted for simplified installation.
Specifications
Dimensions (excluding connections)
- Length: 12.40 in (315 mm)
- Width: 2.91 in (74 mm)
- Height: 8.19 in (208 mm)
Connections
-
Coolant Inlet: 3/4 in (19 mm) - Suitable for standard Webasto / Eberspächer coolant hoses
-
Coolant Outlet: 3/4 in (19 mm) - Suitable for standard Webasto / Eberspächer coolant hoses
-
Water Inlet: 1/2 in PEX-A (0.55 in OD / 13.9 mm) - Standard PEX-A expansion pipe size
-
Water Outlet: 1/2 in PEX-A (0.55 in OD / 13.9 mm) - Standard PEX-A expansion pipe size
Important Installation Note
Please note that the supplied connections use BSP threads and are designed to work only with the provided fittings to ensure correct functionality and safe operation.
Compatible Heaters
This plate heat exchanger is designed for use with a wide range of Eberspächer (Espar) and Webasto coolant heaters that use standard 3/4 in coolant hose connections.
Eberspächer (Espar) Hydronic Coolant Heaters
- Hydronic II series
- Hydronic III series
- Hydronic S3 series
- Other Eberspächer Hydronic models with standard 3/4 in coolant connections
Webasto Thermo Coolant Heaters
- Thermo Top series (including newer variants)
- Thermo Evo series
- Thermo Pro series
- Other Webasto Thermo heaters with standard 3/4 in coolant connections
Commonly Used With (Examples)
- Eberspächer Hydronic S3 D5E / B5E
- Eberspächer Hydronic S3 Commercial series
- Eberspächer Hydronic II D5S
- Webasto Thermo Top Evo 4 / 5+
- Webasto Thermo Pro 50 / 90
Compatibility note: Suitability is based on heater coolant output and standard 3/4 in coolant hose sizing. This heat exchanger may also be used with other Eberspächer and Webasto or other heater brand coolant heaters not explicitly listed above.
Technical Specifications of the Water Plate Heat Exchanger for Espar / Eberspächer & Webasto Coolant Heaters
- Parts type:
- Water tanks / calorifiers & Heater Matrixes
Included in the kit:
Water Plate Heat Exchanger for Espar / Eberspächer & Webasto Coolant Heaters
Product Overview
This water plate heat exchanger is designed for use with Espar / Eberspächer, Webasto, and similar coolant heaters, allowing efficient heat transfer from the heater coolant circuit to a separate fresh water circuit.
The exchanger is constructed with 22 internal plates, keeping coolant and fresh water fully separated while allowing both circuits to flow independently and efficiently heat domestic hot water. Suitable for replace 4111204.
PEX-A Compatibility
The 0.55 in (13.9 mm) outer diameter water connections are ideal for PEX-A expansion installations, ensuring a secure and reliable fit.
The thermostatic valve and connectors are pre-fitted for simplified installation.
Specifications
Dimensions (excluding connections)
- Length: 12.40 in (315 mm)
- Width: 2.91 in (74 mm)
- Height: 8.19 in (208 mm)
Connections
-
Coolant Inlet: 3/4 in (19 mm) - Suitable for standard Webasto / Eberspächer coolant hoses
-
Coolant Outlet: 3/4 in (19 mm) - Suitable for standard Webasto / Eberspächer coolant hoses
-
Water Inlet: 1/2 in PEX-A (0.55 in OD / 13.9 mm) - Standard PEX-A expansion pipe size
-
Water Outlet: 1/2 in PEX-A (0.55 in OD / 13.9 mm) - Standard PEX-A expansion pipe size
Important Installation Note
Please note that the supplied connections use BSP threads and are designed to work only with the provided fittings to ensure correct functionality and safe operation.
Compatible Heaters
This plate heat exchanger is designed for use with a wide range of Eberspächer (Espar) and Webasto coolant heaters that use standard 3/4 in coolant hose connections.
Eberspächer (Espar) Hydronic Coolant Heaters
- Hydronic II series
- Hydronic III series
- Hydronic S3 series
- Other Eberspächer Hydronic models with standard 3/4 in coolant connections
Webasto Thermo Coolant Heaters
- Thermo Top series (including newer variants)
- Thermo Evo series
- Thermo Pro series
- Other Webasto Thermo heaters with standard 3/4 in coolant connections
Commonly Used With (Examples)
- Eberspächer Hydronic S3 D5E / B5E
- Eberspächer Hydronic S3 Commercial series
- Eberspächer Hydronic II D5S
- Webasto Thermo Top Evo 4 / 5+
- Webasto Thermo Pro 50 / 90
Compatibility note: Suitability is based on heater coolant output and standard 3/4 in coolant hose sizing. This heat exchanger may also be used with other Eberspächer and Webasto or other heater brand coolant heaters not explicitly listed above.
