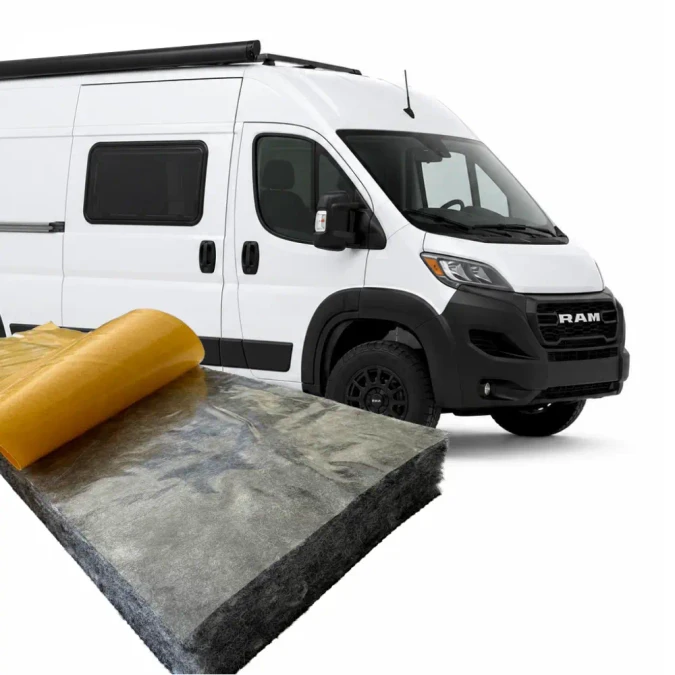

AutoPly Pre-cut Non-Woven Fabric Insulation Kit for RAM ProMaster - 1 inch thickness



Why Choose AutoPly for Your ProMaster Insulation?

• Perfect Fit: Pre-cut for RAM ProMaster panels - no trimming needed.
• Superior Insulation:1-inch thick material keeps you warm in winter and cool in summer.
• Noise Reduction: Minimize road noise and vibrations with high-density non-woven insulation material.
• Safe and Healthy: Odorless, low VOC, mildew-resistant, and fiberglass-free - ideal for a clean van build.
• Built for Extremes: Reliable performance from -40°F to 250°F.

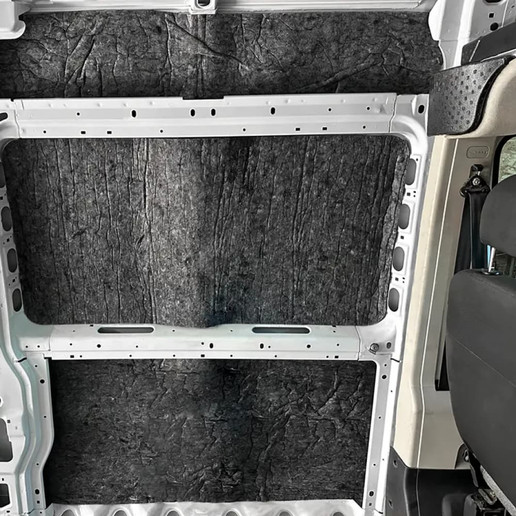

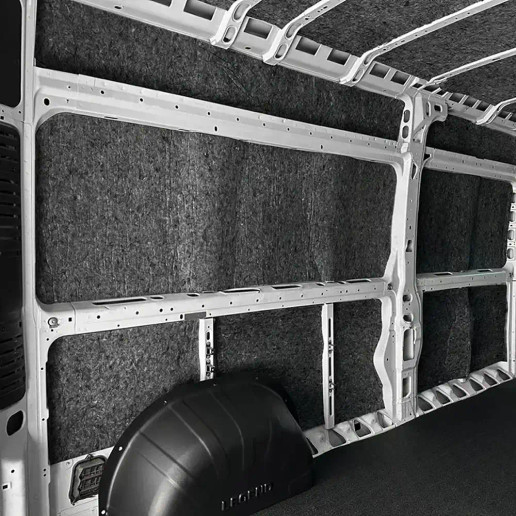

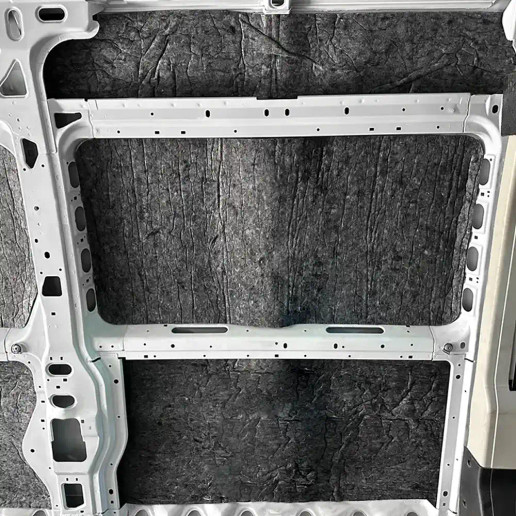

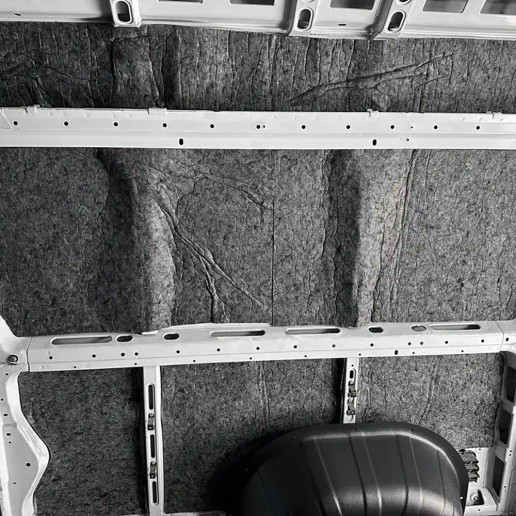

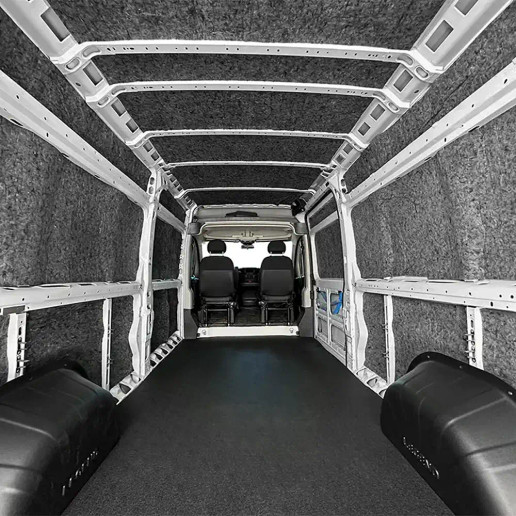

Quick and Easy Installation

Installing your ProMaster insulation kit is fast and frustration-free. Thanks to machine-cut precision and low-VOC adhesive, you can fully insulate your van in 60 minutes or less - no special tools needed. Just peel, stick, and enjoy the benefits of professional-grade insulation.

Comfort on the Road with Promaster Insulation Kit

Whether you’re driving or parked, AutoPly’s Ram ProMaster insulation blocks cold winds and dampens noise. The high-performance non-woven insulation material helps retain heat while reducing outside noise for a quieter and more comfortable interior.

Kit Options Available:

• 4500 - ProMaster City 9 pc kit
• 4118L - ProMaster 118 Low Roof 29 pc kit
• 4136C - ProMaster 136 High Roof Crew 15 pc kit
• 4136L - ProMaster 136 Low Roof 17 pc kit
• 4136 - ProMaster 136 High Roof 23 pc kit
• 4000 - ProMaster 159 Cargo 27 pc kit
• 4000X - ProMaster 159 High Roof XL 32 pc kit
• 4000XSH - ProMaster 159 Super High Roof 35 pc kit

Insulation Materials:

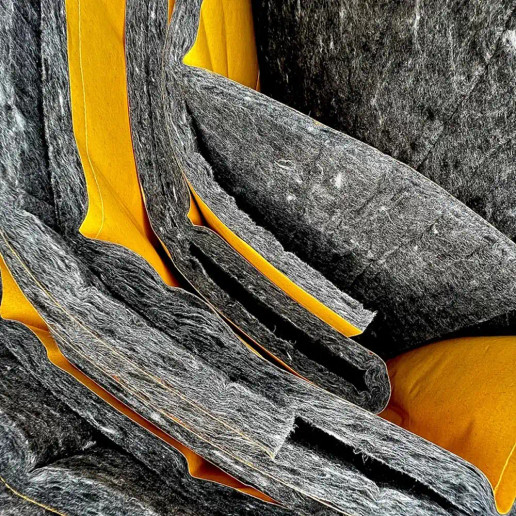

• FiberPly 1.0 Material – Lightweight non-woven polyester insulation designed for thermal and acoustic performance behind wall panels or finished interiors.
• DiamondPly 1.0 Material – Features the same insulation core as FiberPly with an added reinforced diamond-pattern protective surface for improved durability and wear resistance.

Main Difference: FiberPly is best for hidden insulation behind panels, while DiamondPly works well for exposed van interiors, cargo areas, and commercial builds thanks to its reinforced outer layer.

• Both materials are odorless, fiberglass-free, mildew resistant, and low VOC
• Both materials provide R4 thermal insulation at 1 inch (25 mm) thickness
• DiamondPly offers higher durability and puncture resistance
• FiberPly offers a softer, lighter insulation finish

Technical Specifications:

• Thickness: 1.0 inch (25 mm)
• Material: FiberPly or DiamondPly
• Thermal Stability: -40°F to 250°F (-40°C - 121°C)
• R-Value: R4.0 (for 1 inch)
• Adhesive: Solvent-free, low VOC acrylic
• Certifications: FMVSS 302, CMVSS-compliant
• Model years: 2016 - present
