Airtronic Heater Not Heating Enough? Espar B2L Fuel Line Case Study
Posted by [email protected] on 9th Jun 2026
Airtronic Heater Not Heating Enough? Espar B2L Fuel Line Case Study
An RV owner in Colorado contacted us after installing a new-generation Espar Airtronic S3 B2L gasoline heater. The Airtronic heater was running, but the heat output was very very weak.
There were no stored fault codes in the heater ECU. That is an important detail because not every heater problem appears as an error code. An Eberspacher heater can start, run, and still underperform if fuel delivery, voltage stability, ducting, airflow, or combustion setup is not correct.
In this case, the issue came down to two small installation details: the fuel line setup and the fuel metering pump angle.
The Problem: The Airtronic Heater Ran, But Heat Output Was Weak
The customer’s complaint was straightforward. The Espar B2L was working, but the RV was not warming up properly.

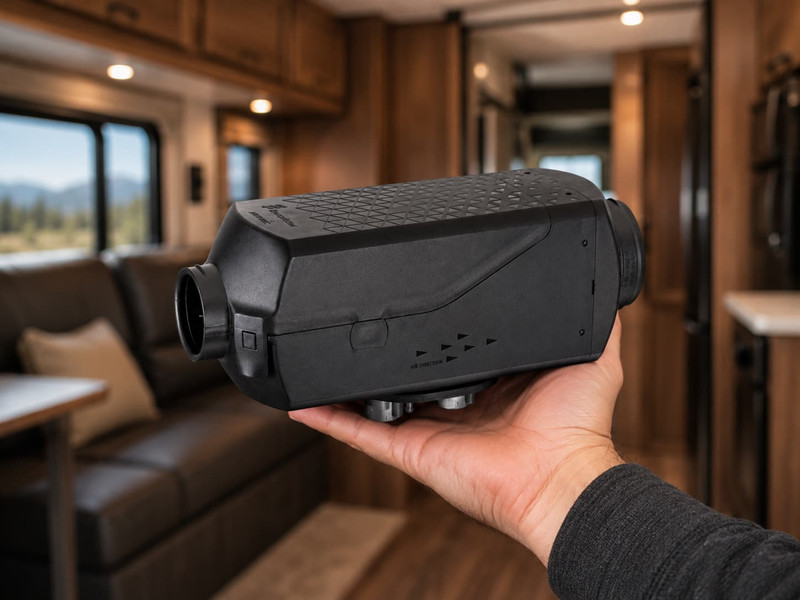

The B2L is a compact 12V gasoline heater rated at about 6,800 BTU / 2 kW. It is a good fit for many smaller RV, camper, and van applications where a gasoline parking heater makes more sense than a diesel heater.
But the B2L can be sensitive to fuel delivery and power supply details. If the fuel line size, pump angle, wiring, ducting, or combustion setup is not right, the heater may run without delivering the expected heat.
First Step: Check for Fault Codes
Our first troubleshooting step was to check whether the heater had stored any fault codes.
It had not.
That did not mean the installation was correct. It only meant the heater ECU had not logged a fault that pointed directly to a shutdown condition or failed component.
When an Airtronic heater is running but not heating enough, photos can be more useful than guessing. We asked the customer to send detailed pictures of the full installation, including the heater, fuel line routing, metering pump, electrical connections, ducting, exhaust, and combustion air intake.
If your heater does show an error, start with our guide to Espar Airtronic fault codes and Eberspacher Hydronic fault codes. If the controller shows “No Heater,” use our EasyStart Pro “No Heater” troubleshooting guide before replacing parts.
What We Found in the Photos
After reviewing the installation photos, we noticed that the same blue fuel line had been used throughout the installation.
That was the key issue.

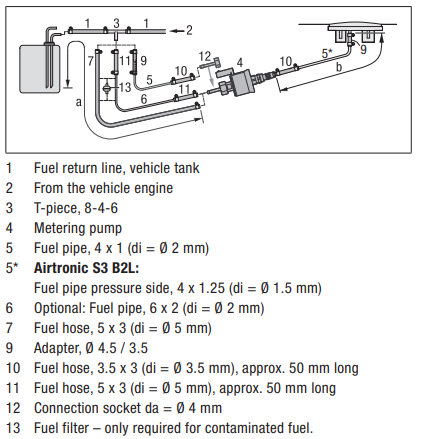

The Espar Airtronic S3 B2L installation kit uses two different fuel pipe sizes: 4 x 1 mm and 4 x 1.25 mm. The B2L fuel setup also identifies a 2 mm fuel line on the intake side and a 1.5 mm fuel line on the pressure side. These are small differences, but on the B2L they matter.
In this installation, using the same fuel line throughout affected fuel delivery. The heater could still run, but it was not receiving fuel in the way the system was designed to operate.
The Fix: Correct Fuel Line and Pump Angle
We asked the customer to replace the fuel line with the correct fuel line sizes for the B2L installation.
We also recommended increasing the fuel metering pump angle. The metering pump should be installed with the delivery side rising upward. For most Airtronic 3 heaters, a pump angle above 15 degrees is allowed, and 15 to 35 degrees is the preferred range.
After the customer corrected the fuel line and adjusted the pump angle, the Airtronic heater started working as it should.
The lesson is simple: a heater can be “almost right” and still underperform. On smaller gasoline heater models like the B2L, fuel delivery details can make a noticeable difference.
For a related fuel-system example, see our case study on Eberspacher error P000200 when the fuel pump ticks but the heater won’t start.
Why the B2L Can Be Sensitive to Installation Details
The Espar B2L is not difficult to install when the manual is followed, but it does not respond well to shortcuts.
Fuel delivery matters. Pump angle matters. Stable 12V power matters.
The B2L is designed as a 12V heater. The manual lists undervoltage shutdown at about 10.5V and overvoltage shutdown at about 16V. That means unstable power can cause performance problems or shutdowns, especially if the heater is connected through an improvised power setup.
For B2L installations, pay close attention to:
- Correct B2L fuel line sizes
- Fuel metering pump angle
- Secure fuel line routing
- Stable 12V power supply
- Correct fusing
- Proper combustion air and exhaust routing
- Correct heater mounting
- Correct ducting size
- Full installation photos if support review is needed
For ducting, AS3 B2L heaters use 2.4 in. (60 mm) ducting. We do not recommend increasing the ducting size on this heater. For more detail on airflow problems, see our guide to Espar and Webasto heater ducting design tips.
Electrical Tip for Airtronic Gasoline Heater Installations
For B2L installations, use the vehicle battery and the provided fuse protection as intended.
Avoid powering the heater through improvised converter setups, unstable auxiliary circuits, or solar-related wiring that may interrupt power. If a battery management system is used, it needs to respect the heater’s voltage limits and response timing.
A heater that loses stable power may shut down unexpectedly or store interruption-related faults. If your B2L turns off at random times, check the power supply early in the troubleshooting process.
Our Eberspacher air heater installation checklist is a useful companion for checking wiring, fusing, exhaust routing, combustion air, ducting, and fuel-system basics before running the heater.
Airtronic vs Webasto Gasoline Heater: Same Lesson, Different System
This case involved an Espar Airtronic B2L, but the broader lesson applies to any gasoline parking heater.
Whether you are installing an Airtronic heater or comparing it with a Webasto gasoline heater, the details matter. Fuel line setup, pump position, voltage stability, ducting, exhaust routing, and combustion air routing all affect heater performance.
For shoppers comparing gasoline options, our Webasto Air Top 2000 STC Gasoline vs Espar Airtronic AS3 B2L comparison is a useful next step.
What RV Owners and Installers Can Learn From This Case
This case was not caused by a bad heater. Once the fuel line setup and pump angle were corrected, the heater worked as expected.
The problem was installation detail.
If your Espar B2L heater is running but not heating enough, do not assume the heater has failed. Start by checking the installation against the manual.
The most important items to check are:
- Fuel line sizes
- Fuel metering pump angle
- Power supply and fuse setup
- Ducting size
- Combustion air routing
- Exhaust routing
- Heater mounting
- Any stored fault codes
If there are no fault codes, detailed installation photos can help our support team spot issues that may not appear in diagnostic data.
For gasoline RVs, vans, and camper builds, the Espar Airtronic S3 B2L Gasoline 12V Heater Kit is a strong option when installed correctly. You can also browse our Espar gasoline air heaters and Espar air heaters to compare gasoline and diesel options.
Related Heatso Guides
If you are troubleshooting an Espar, Eberspacher, or Airtronic heater, these guides may help:
- Find and Clear Espar / Eberspacher Airtronic and Hydronic Heater Fault Codes
- EasyStart Pro Shows “No Heater”? Here’s What It Means and How to Fix It
- Eberspacher Error P000200: What to Do When Your Fuel Pump Ticks but the Heater Won’t Start
- Avoid Espar or Webasto Heater Overheating: Ducting Design Tips for Reliable Heating
- Eberspacher Air Heater Installation Checklist
FAQs
Why is my Airtronic heater not heating enough?
If the heater runs but does not produce enough heat, check the fuel line sizes, fuel pump angle, power supply, ducting, combustion air, exhaust routing, and heater mounting. The issue may be installation-related even if no fault codes are stored.
Does the Espar Airtronic B2L use two fuel line sizes?
Yes. The Airtronic S3 B2L fuel setup uses different line sizes, including a 2 mm fuel line on the intake side and a 1.5 mm fuel line on the pressure side. Use the fuel line sizes specified for the B2L installation.
What angle should the Airtronic B2L fuel pump be installed at?
The metering pump should be installed with the delivery side rising upward. For most Airtronic 3 heaters, any mounting position above 15 degrees is allowed, and 15 to 35 degrees is preferred.
Can power supply issues cause a gasoline heater to shut down?
Yes. The B2L is a 12V gasoline heater, and the manual lists shutdown limits around 10.5V for undervoltage and 16V for overvoltage. Unstable power, converters, or interrupted auxiliary circuits can cause shutdowns or interruption-related faults.
Is the Espar Airtronic B2L a gasoline parking heater?
Yes. The Espar Airtronic S3 B2L is a 12V gasoline parking heater often used in gasoline vans, RVs, and camper builds where matching the heater fuel to the vehicle fuel makes sense.
What ducting size does the Airtronic B2L use?
The AS3 B2L uses 2.4 in. (60 mm) ducting. We do not recommend increasing the ducting size on this heater.
What should I send to support if my Eberspacher heater is not heating properly?
Send clear photos of the heater, fuel pump, fuel line routing, electrical connections, fuse setup, ducting, exhaust, combustion air intake, and controller. Include the heater model, fuel type, voltage, fault codes if available, and a short description of the symptoms.
