All-in-One Mobile Power for RVs, Work Vans, and Off-grid Jobs
Get reliable energy on the road with a compact, integrated power system that simplifies installs and keeps your setup running safely in every season. Eberspächer Zeliox NEO 3600 combines 2.4 kWh of energy storage with 3.6 kW continuous output (7.2 kW surge), plus shore power, solar, and alternator charging with touchscreen and app control.
Benefits & Use Cases

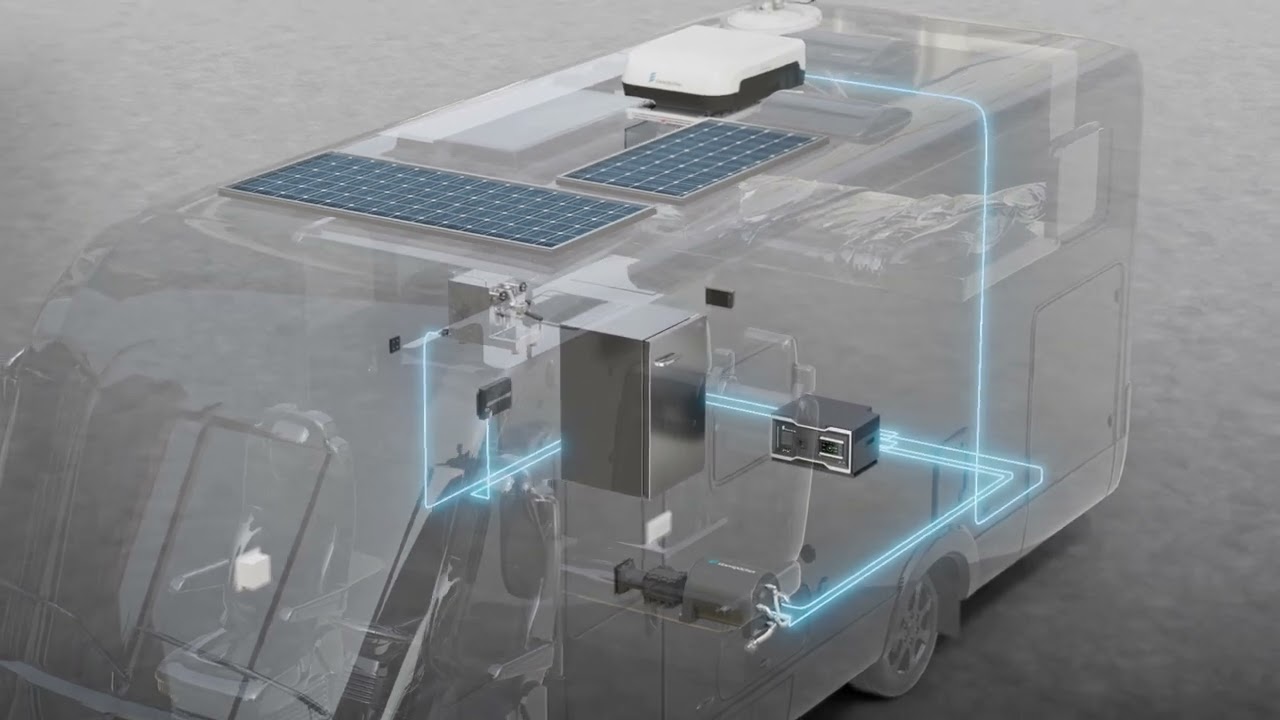

Eberspächer (Espar) Zeliox NEO brings structure to mobile electrical systems by combining battery storage, inverter, charging electronics, and solar control into one rugged module. It’s ideal for RV travelers, contractors, and fleet vehicles that need dependable power without a complex multi-component installation.
- Plug-and-play design can significantly reduce installation time compared to traditional multi-component systems
- Multiple charging paths keep you powered anywhere: shore power, solar panels, or vehicle alternator
- Clean 120V AC power plus 12V, 24V, and 48V DC outputs for mixed electrical loads
- Integrated battery heating supports reliable charging in cold-weather conditions
For cleaner wiring and smarter accessory control, the optional Espar Zeliox Control Module (ZCM6) adds wireless switching, programmable channels, and digital load protection for 12V and 24V systems.
Technical Specofocations
- System Type: All-in-one energy storage system (battery, inverter, BMS, and solar controller)
- Battery Type: LiFePO4 (48V architecture)
- Energy Capacity: 2.4 kWh (expandable up to 9.6 kWh with up to three extension batteries)
- Continuous Output Power: 3,600 W
- Surge Power: 7,200 W
- Electrical Outputs: 120V AC, 12V DC, 24V DC, and 48V DC
- Charging Inputs: 120V AC shore power, integrated MPPT solar charging, vehicle alternator (DC-DC quick charging)
- Charging Time (approximate): Shore power ~1.1 hours; while driving ~1.8 hours; solar ~1.8 hours (conditions dependent)
- Controls: Integrated 4.3-inch color touchscreen display plus Android and iOS app control via Bluetooth
- Warranty: 5 years (upon product registration within 3 months of purchase)
- Dimensions (unit only): 19.5 × 15.0 × 10.5 in (494 × 380 × 268 mm)
- Weight: 95 lb (43 kg)
- Optional Add-On: Zeliox Control Module (ZCM6) for smart 12V and 24V accessory control
- Optional Add-On Dimensions (ZCM6): 10.0 × 2.0 × 6.5 in (253 × 48 × 161 mm)
- Optional Add-On Weight (ZCM6): 2 lb (0.9 kg)
Vehicle Compatibility
- RVs, camper vans, and overland builds requiring reliable onboard 120V AC power
- Service vans and work trucks powering tools, chargers, and jobsite equipment
- Construction trailers and mobile workstations with shore or solar charging
- Vehicles with 12V or 24V electrical systems charging while driving
Kit Includes
- Espar Zeliox NEO 3600 all-in-one power unit
- Integrated 48V LiFePO4 battery (2.4 kWh)
- Integrated inverter, BMS, and MPPT solar controller
- Front-mounted 120V AC outlets (15A and 30A)
- Anderson plug-and-play input and output connectors
- Integrated 4.3-inch touchscreen display
- Bluetooth mobile app access (Android and iOS)
- Installation and operating documentation
FAQs
What is the difference between Zeliox NEO 3600 and Zeliox NEO 4000?
Zeliox NEO 3600 is a fully integrated all-in-one power system designed for most RV, van, and mobile work applications.
Zeliox NEO 4000 is positioned as a higher-capacity model in the Zeliox range and is intended for users with greater power or runtime requirements.
What can the Espar Zeliox NEO 3600 power?
With 3,600 W of continuous output and a 7,200 W surge rating, it can run common RV appliances, power tools, battery chargers, and DC accessories.
How do I keep the system charged while traveling?
You can recharge from shore power, solar panels, or while driving using alternator charging, keeping your power system flexible on-road and off-grid.
Can I increase battery capacity later?
Yes. Eberspächer Zeliox NEO is modular and supports up to three additional battery packs for expanded energy storage as your power needs grow.
Is Espar Zeliox suitable for cold-weather use?
Yes. An integrated battery heating system supports safer charging and operation in cold temperatures, making it suitable for year-round use.
Need help verifying fitment, wiring, or choosing add-ons like the Control Module? Talk to a Heatso expert
Included in the kit:
All-in-One Mobile Power for RVs, Work Vans, and Off-grid Jobs
Get reliable energy on the road with a compact, integrated power system that simplifies installs and keeps your setup running safely in every season. Eberspächer Zeliox NEO 3600 combines 2.4 kWh of energy storage with 3.6 kW continuous output (7.2 kW surge), plus shore power, solar, and alternator charging with touchscreen and app control.
Benefits & Use Cases
Eberspächer (Espar) Zeliox NEO brings structure to mobile electrical systems by combining battery storage, inverter, charging electronics, and solar control into one rugged module. It’s ideal for RV travelers, contractors, and fleet vehicles that need dependable power without a complex multi-component installation.
- Plug-and-play design can significantly reduce installation time compared to traditional multi-component systems
- Multiple charging paths keep you powered anywhere: shore power, solar panels, or vehicle alternator
- Clean 120V AC power plus 12V, 24V, and 48V DC outputs for mixed electrical loads
- Integrated battery heating supports reliable charging in cold-weather conditions
For cleaner wiring and smarter accessory control, the optional Espar Zeliox Control Module (ZCM6) adds wireless switching, programmable channels, and digital load protection for 12V and 24V systems.
Technical Specofocations
- System Type: All-in-one energy storage system (battery, inverter, BMS, and solar controller)
- Battery Type: LiFePO4 (48V architecture)
- Energy Capacity: 2.4 kWh (expandable up to 9.6 kWh with up to three extension batteries)
- Continuous Output Power: 3,600 W
- Surge Power: 7,200 W
- Electrical Outputs: 120V AC, 12V DC, 24V DC, and 48V DC
- Charging Inputs: 120V AC shore power, integrated MPPT solar charging, vehicle alternator (DC-DC quick charging)
- Charging Time (approximate): Shore power ~1.1 hours; while driving ~1.8 hours; solar ~1.8 hours (conditions dependent)
- Controls: Integrated 4.3-inch color touchscreen display plus Android and iOS app control via Bluetooth
- Warranty: 5 years (upon product registration within 3 months of purchase)
- Dimensions (unit only): 19.5 × 15.0 × 10.5 in (494 × 380 × 268 mm)
- Weight: 95 lb (43 kg)
- Optional Add-On: Zeliox Control Module (ZCM6) for smart 12V and 24V accessory control
- Optional Add-On Dimensions (ZCM6): 10.0 × 2.0 × 6.5 in (253 × 48 × 161 mm)
- Optional Add-On Weight (ZCM6): 2 lb (0.9 kg)
Vehicle Compatibility
- RVs, camper vans, and overland builds requiring reliable onboard 120V AC power
- Service vans and work trucks powering tools, chargers, and jobsite equipment
- Construction trailers and mobile workstations with shore or solar charging
- Vehicles with 12V or 24V electrical systems charging while driving
Kit Includes
- Espar Zeliox NEO 3600 all-in-one power unit
- Integrated 48V LiFePO4 battery (2.4 kWh)
- Integrated inverter, BMS, and MPPT solar controller
- Front-mounted 120V AC outlets (15A and 30A)
- Anderson plug-and-play input and output connectors
- Integrated 4.3-inch touchscreen display
- Bluetooth mobile app access (Android and iOS)
- Installation and operating documentation
FAQs
What is the difference between Zeliox NEO 3600 and Zeliox NEO 4000?
Zeliox NEO 3600 is a fully integrated all-in-one power system designed for most RV, van, and mobile work applications.
Zeliox NEO 4000 is positioned as a higher-capacity model in the Zeliox range and is intended for users with greater power or runtime requirements.
What can the Espar Zeliox NEO 3600 power?
With 3,600 W of continuous output and a 7,200 W surge rating, it can run common RV appliances, power tools, battery chargers, and DC accessories.
How do I keep the system charged while traveling?
You can recharge from shore power, solar panels, or while driving using alternator charging, keeping your power system flexible on-road and off-grid.
Can I increase battery capacity later?
Yes. Eberspächer Zeliox NEO is modular and supports up to three additional battery packs for expanded energy storage as your power needs grow.
Is Espar Zeliox suitable for cold-weather use?
Yes. An integrated battery heating system supports safer charging and operation in cold temperatures, making it suitable for year-round use.
Need help verifying fitment, wiring, or choosing add-ons like the Control Module? Talk to a Heatso expert
